Battery monitoring

Every cell, not just the string.

Per-cell voltage and temperature, up to 250 batteries.

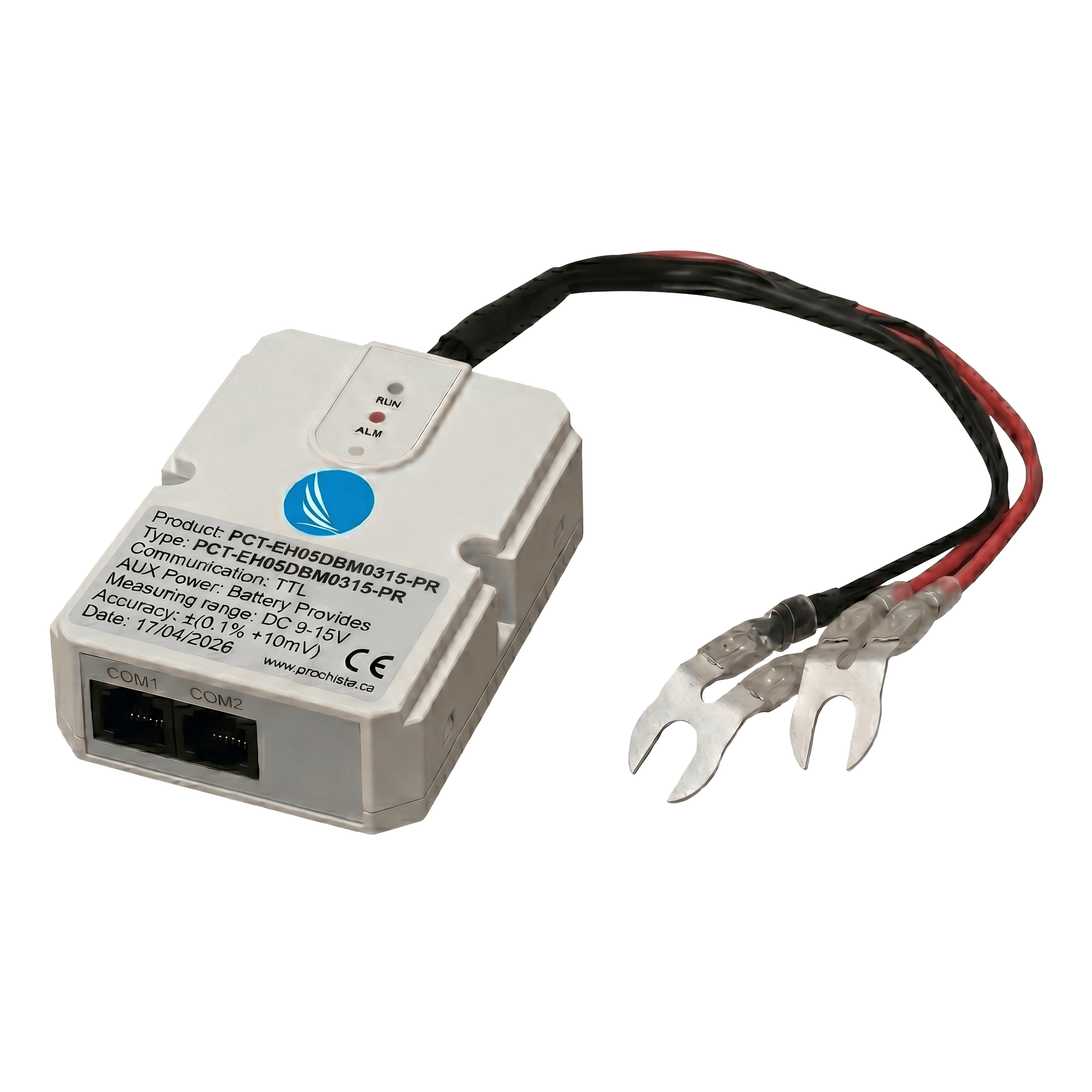

Wired daisy-chain battery monitoring probe: per-cell voltage and temperature monitoring for up to 250 batteries on a single controller. Part PCT-EH05DBM0315-PR.

Per-cell voltage
Per-cell temperature
RJ-11 daisy chain
2500 V isolation

Up to 250 probes per controller

One probe per battery, one daisy chain.

The PCT-EH05DBM0315 probe mounts directly on each battery and reports voltage and temperature to the Prochista Control Unit over a simple RJ-11 daisy chain. No per-probe wiring runs, no separate gateway per cell.

Voltage + temperature per battery

Each probe reports its cell's real-time voltage (0.1 V on 12/24 V, 0.01 V on 2 V cells) and temperature (1 °C resolution) to the controller, directly, not estimated.

0.01–0.1 V
±1 °C
250-probe string

One cable, 250 nodes

Standard RJ-11 dual daisy-chain bus, with no per-probe home run and no extra switches. Up to 250 probes on one chain, up to 3 m between adjacent probes.

RJ-11
250 max
3 m hop

2500 V optical isolation per cell

Every probe is optically isolated from the next, so a single bad cell or wiring fault never propagates into the rest of the string or to the controller.

2500 V isolation
Battery-powered
60 mW

Per-cell, not per-string

Six failure modes a bulk meter calls noise.

Bulk-string monitoring sees an average. The Battery Monitor Probe sees every cell, so drift, heat and capacity fade surface as a single ranked alarm instead of hiding in the mean.

Bulk string meter

2.02 V

string average

Reads normal

One number for the whole string. A failing cell hides in the average.

Per-cell probes

Cell 14: drift + heat

Every probe reports its own cell, so the one that's failing is obvious.

Caught per-cellCell driftHot cellCapacity fadeConnection corrosionResistance creepEnd-of-life

250

Probes per controller

2500 V

Optical isolation per cell

0.01 V

Resolution on 2 V cells

−30…+70 °C

Operating range

Capabilities

Six things that make it a fit for critical DC plant.

Every item is straight from the datasheet, for 24 V, 12 V (-PR) and 2 V (-PRL) cell banks.

Multi-voltage cells

24 V, 12 V (PR) and 2 V (PRL) cell variants, same controller, same monitoring stack.

High-resolution voltage

0.1 V on 12–24 V cells, 0.01 V on 2 V cells, enough to spot drift before a string failure.

Per-cell temperature

Built-in sensor, -30 °C to +70 °C, 1 °C resolution. Catch a degrading cell weeks early.

LED notification per cell

A green/amber/red status LED on each probe gives a tech instant per-cell health, no laptop.

2500 V optical isolation

Every probe optically isolated from the chain, for fault tolerance across the whole string.

Tiny, light, cool

58 × 42 × 24 mm, about 70 g, 60 mW max. Fits on any battery and runs from the cell it monitors.

Battery Monitor Probe sensor datasheet

Full specifications, dimensions and wiring, in one PDF.

Installation

A 250-cell string instrumented in a single visit.

The probe is powered from the cell it monitors and reports over the same RJ-11 daisy chain. No separate power, no per-probe IT cable, no string shutdown to install.
